65 W 2C1A PD Application Solution

65 W Multi-port PD Integrated 165 mOhm GaN scheme with 2C1A interface. Simple design, high integration, compact and portable. High-efficiency fast charging, strong performance, excellent temperature rise control, good compatibility, can provide stable power for multiple devices at the same time, and easily meet all kinds of charging needs.

Application Details

Application Description

65W Multi-port PD Integrated 165mR GaN Solution with 2C1A Interface. Simple design, high integration, compact and portable. High-efficiency fast charging, strong performance, excellent temperature rise control, good compatibility, can provide stable power supply for multiple devices at the same time, easily meet various charging needs.

Application Diagram

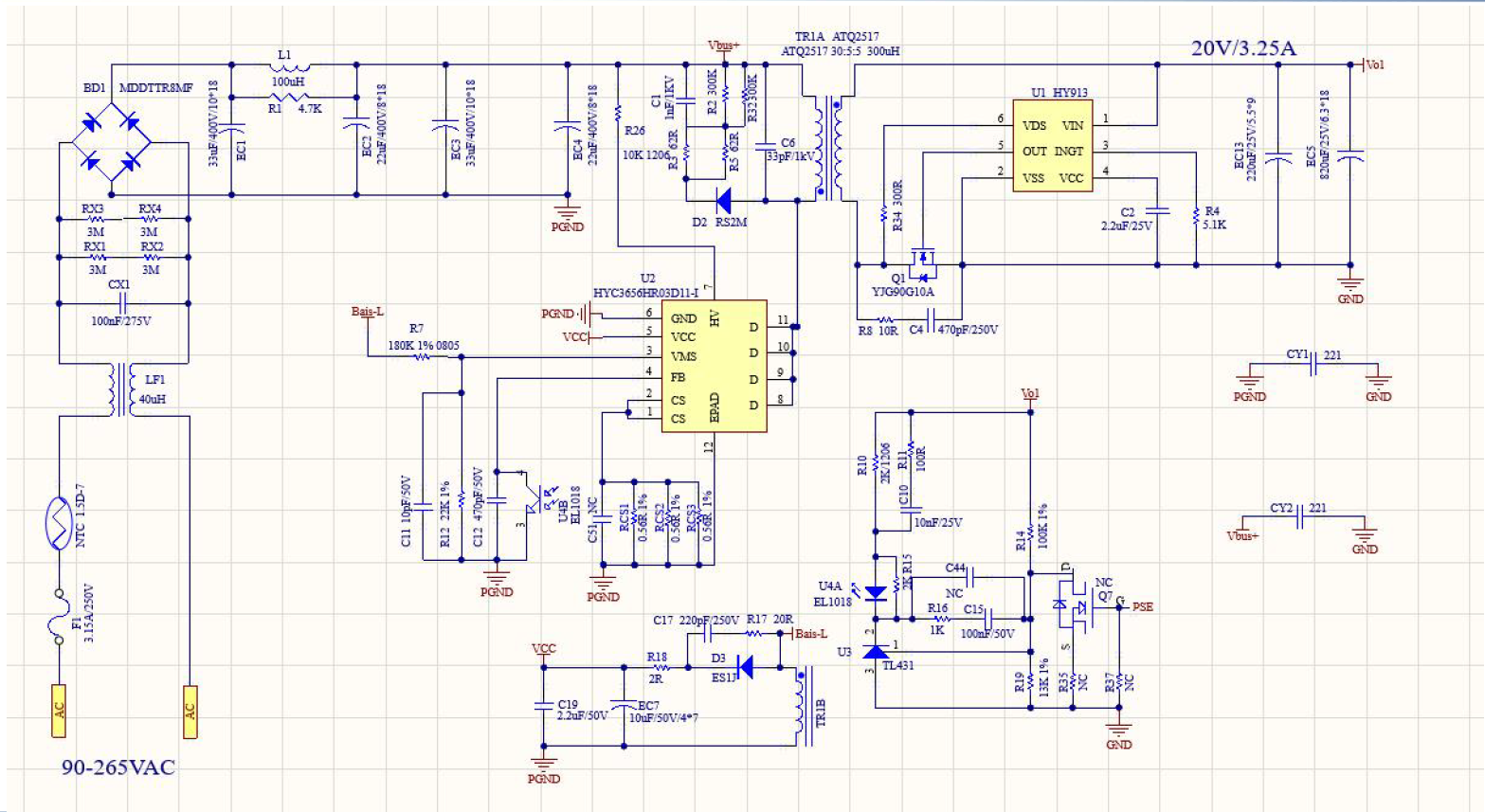

Sch-AC-to-DC

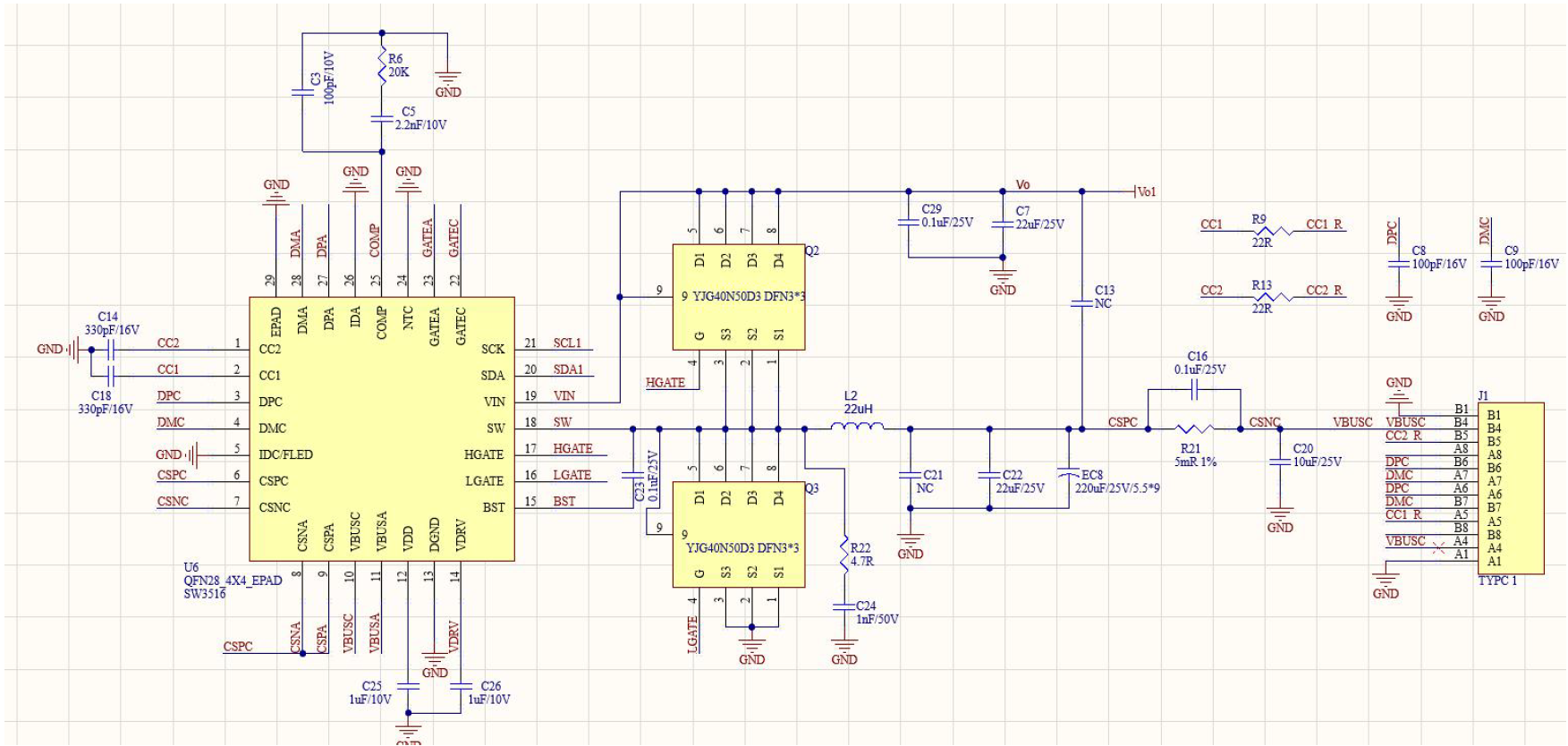

Sch-C1

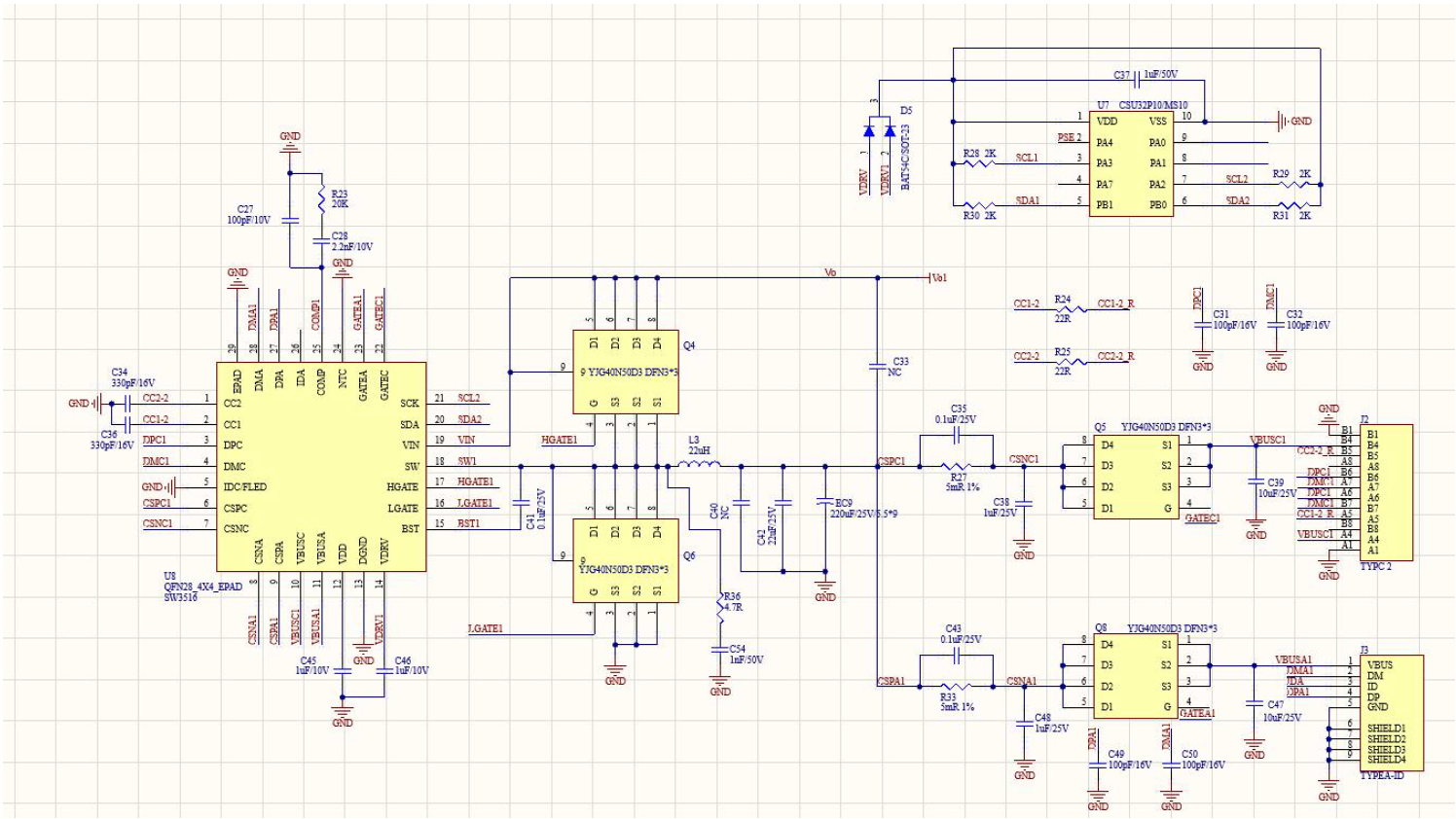

Sch-C2+A and MCU

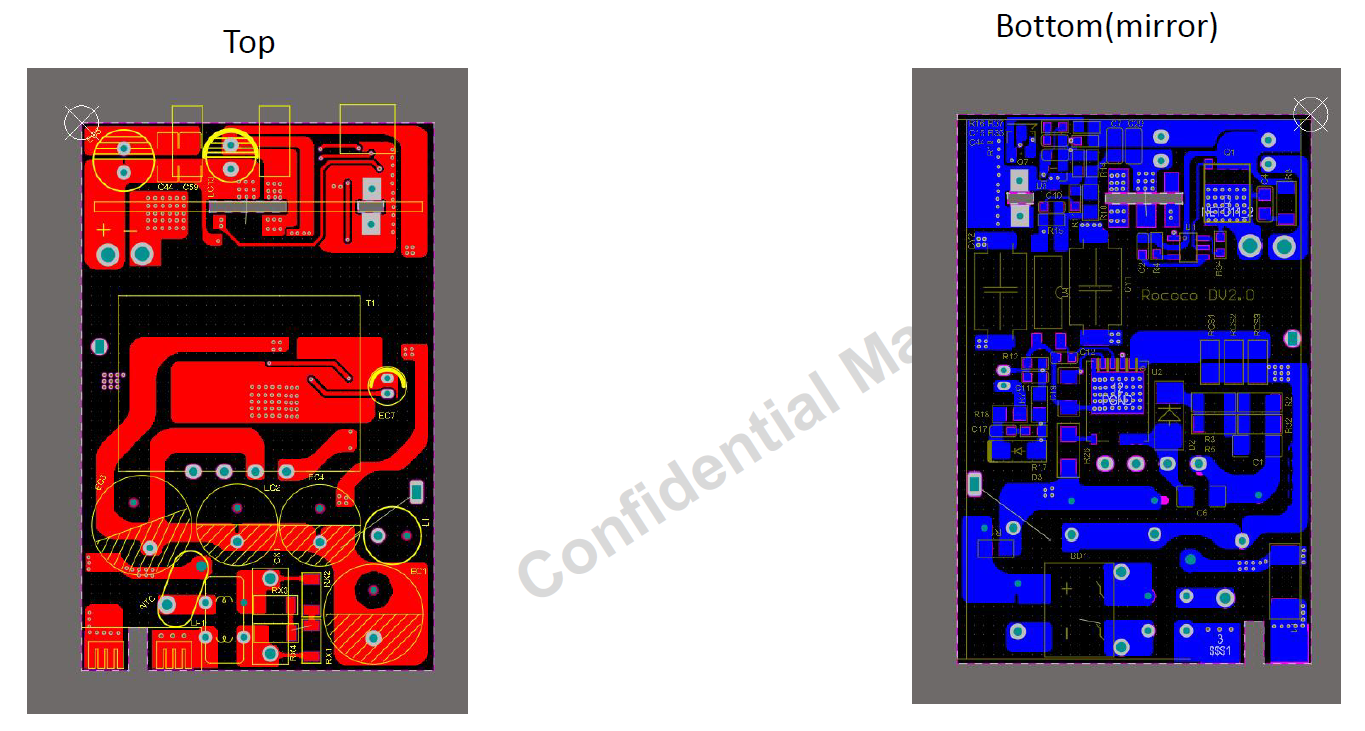

PCB1-Top-and-Bottom

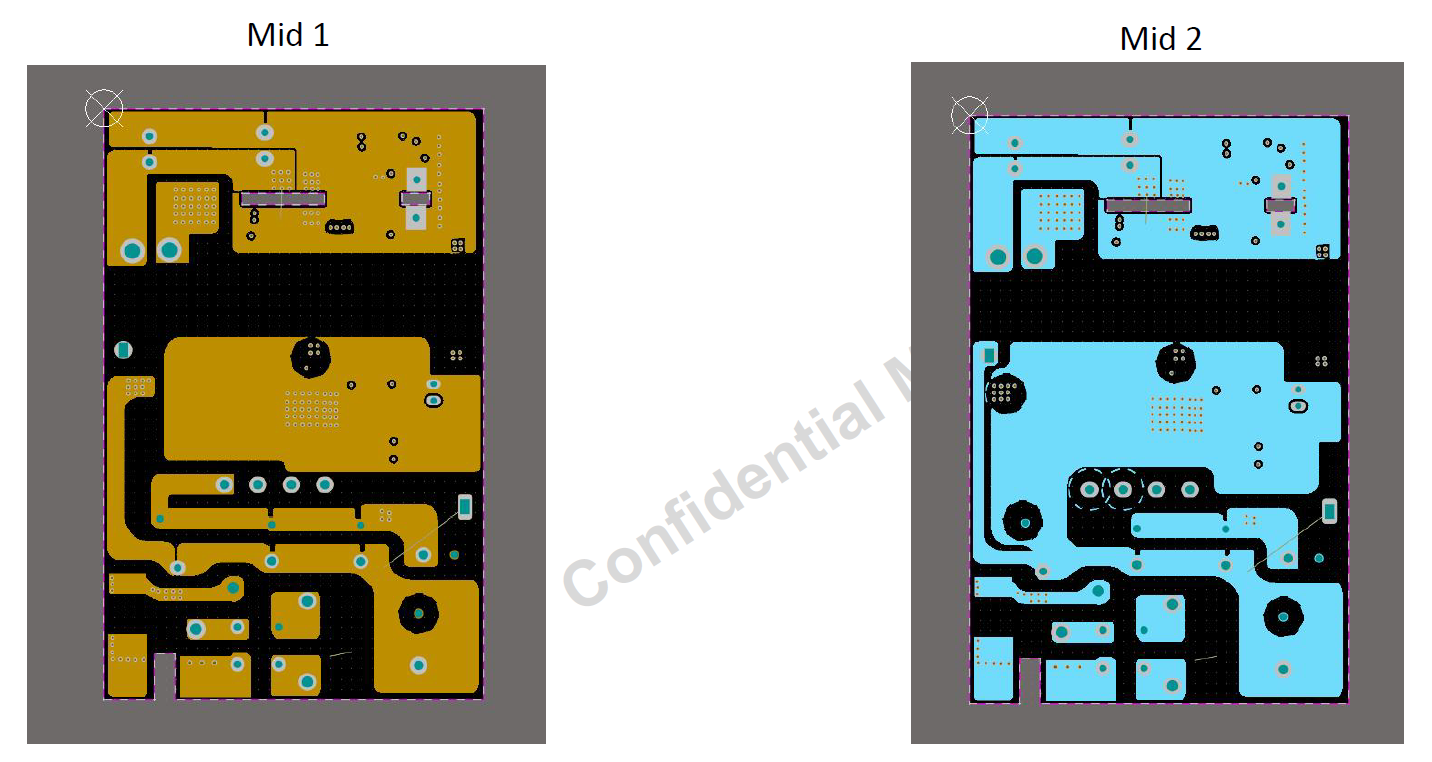

PCB1-Mid1-and-Mid2

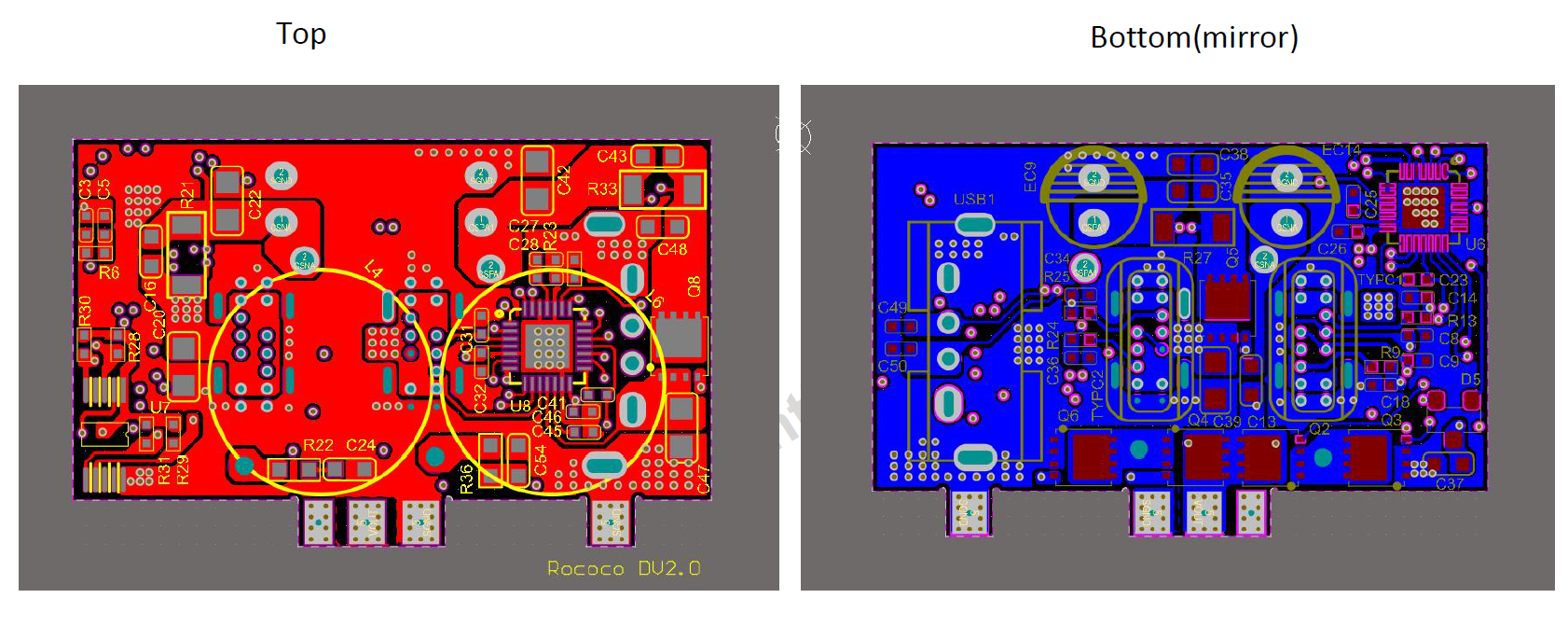

PCB2-Top-and-Bottom

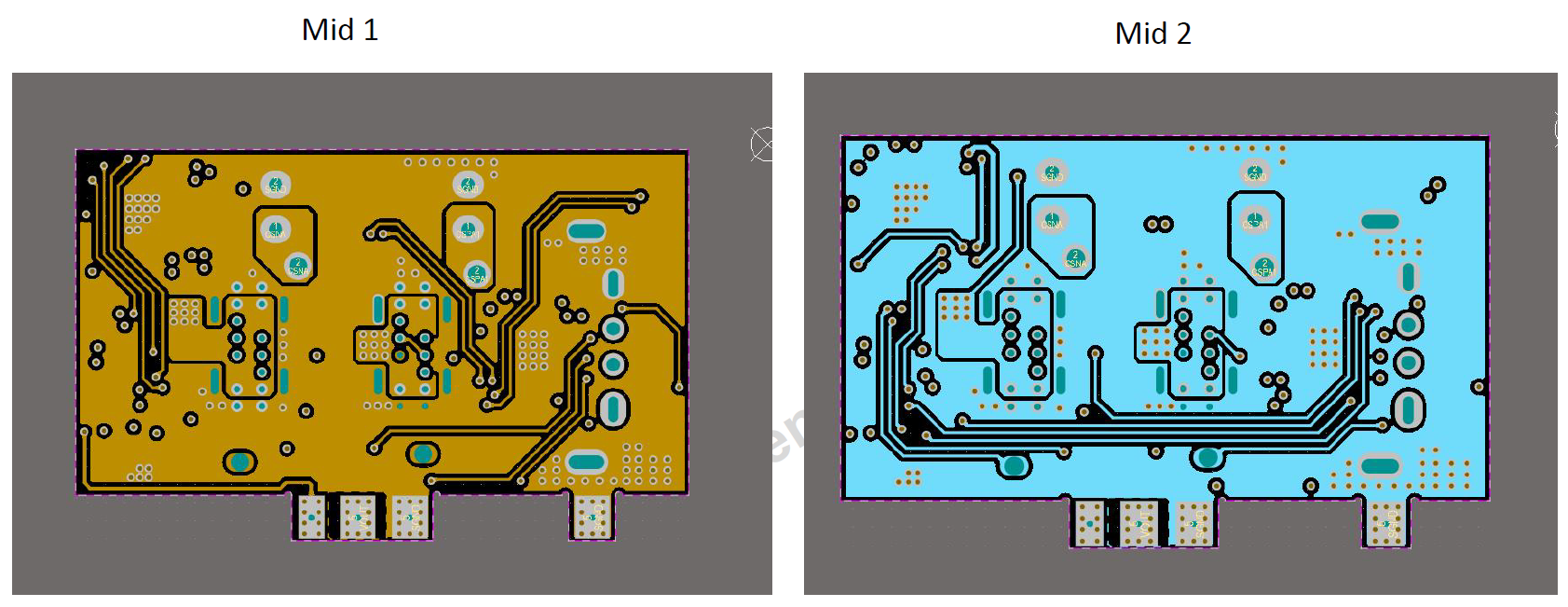

PCB2-Mid1-and-Mid2
